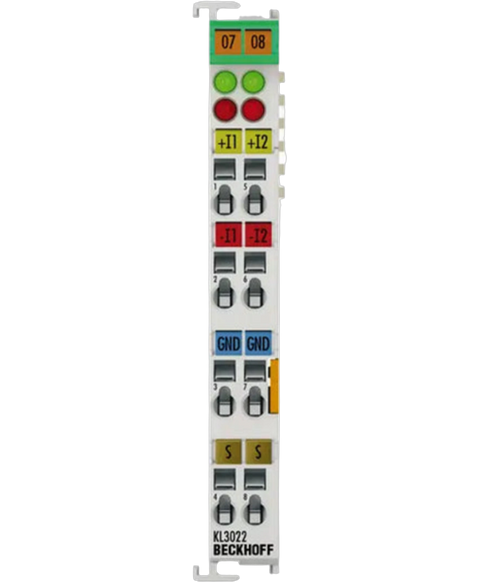

Beckhoff KL3022
Bus terminal, 2-channel, analog input, differential input, 35VDC, 4-20mA, 12 bit resolution, -25 to +60 degree c, IP20
This Beckhoff KL3022 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL27075736512.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | KL3022 |
| Input channels | 2 differential current inputs |
| Signal range | 4–20 mA |
| Resolution | 12 bit |
| Conversion time | ~2 ms |
| Internal resistance | 80 Ω + diode voltage 0.7 V |
| Common-mode voltage | Max. 35 V |
| Electrical isolation | 500 V (K-bus/signal voltage) |
| Surge voltage resistance | 35 V DC |
| Power supply | Via the K-bus |
| Current consumption (K-bus) | typ. 60 mA |
| Power contacts current load | — (no power contacts) |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 70 g |
| Material | Polycarbonate |
| Installation | On 35 mm DIN rail, EN 60715, with lock |
| Mounting | Side-by-side via double slot and key connection |
| Protection rating | IP20 |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Standards (EMC) | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| ATEX/IECEx marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
