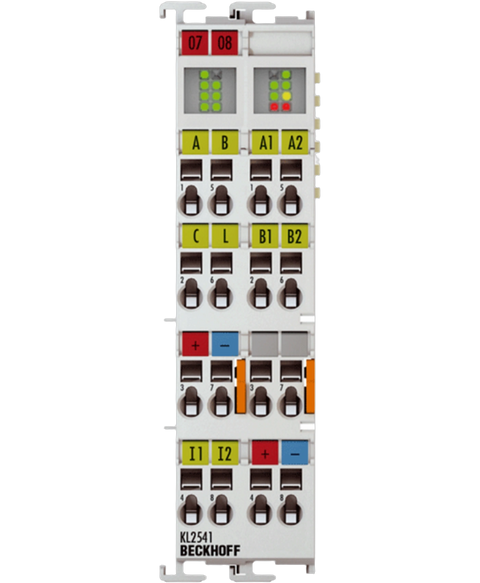

Beckhoff KL2541
Bus terminal, 1-channel motion interface, outputs: 1 x stepper motor , encoder input, inputs: 2 x end position , 1 x encoder, supply voltage electronics: 24VDC, supply voltage power: 8-48VDC, 5A, IP20
This Beckhoff KL2541 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805609739.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | KL2541 |
| Interface type | Stepper motor with incremental encoder |
| Outputs | 1 x stepper motor |
| Inputs | 2 x end position, 1 x encoder |
| Supply voltage (electronics) | 24 V DC via power contacts |
| Supply voltage (power) | 8–48 V DC external |
| Output current | Max. 5.0 A |
| Step frequency | Max. 125,000 steps/s |
| Micro stepping | Full, half, up to 64‑fold |
| Current controller frequency | Approx. 25 kHz |
| Encoder input signal | 5–24 V DC, typ. 5 mA, single‑ended |
| Input frequency | Max. 400,000 increments/s (4‑fold evaluation) |
| Resolution | Approx. 5000 positions per revolution (typ.) |
| Diagnostics LEDs | Phase A/B error, loss of step, power, enable |
| Electrical isolation | 500 V (K‑bus/signal voltage) |
| Current consumption (power contacts) | Typ. 35 mA |
| Current consumption (K‑bus) | Typ. 100 mA |
| Dimensions (W x H x D) | 24 mm x 100 mm x 68 mm |
| Weight | Approx. 100 g |
| Installation | 35 mm DIN rail, EN 60715 |
| Protection rating | IP20 |
| Operating temperature | 0–55 °C |
| Storage temperature | −25 to +85 °C |
| Relative humidity | 95%, no condensation |
| Compliance | EN 61000‑6‑2/‑6‑4 EMC, EN 60068‑2‑6/‑27 vibration/shock |
| Approvals/Markings | CE, UL |
