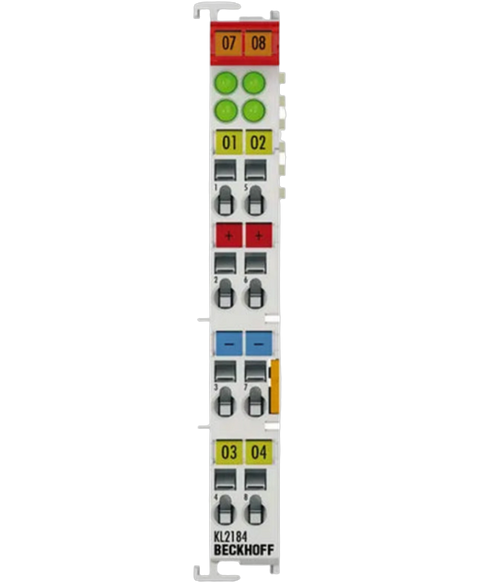

Beckhoff KL2184
Digital output terminal, 4-channel, 24VDC, ground switching, 0.5A, 2 outputs 3-wire systems, 2 outputs 1-wire system
This Beckhoff KL2184 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805641878.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL2184 |
| Channels | 4 digital outputs, ground switching |
| Rated Voltage | 24 V DC (-15%/+20%) |
| Max Output Current | 0.5 A per channel |
| Short-Circuit Current | < 7 A |
| Breaking Energy | < 100 mJ/channel |
| Reverse Voltage Protection | Yes |
| Electrical Isolation | 500 V (K‑bus/field potential) |
| Current Consumption (Power Contacts) | typ. 30 mA + load |
| Current Consumption (K‑bus) | typ. 9 mA |
| Process Image Width | 4 outputs |
| Configuration | No address or configuration setting |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 70 g |
| Connection Technology | 2‑/3‑wire, spring actuation |
| Installation | 35 mm DIN rail (EN 60715) with lock |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -25 to +85 °C |
| Relative Humidity | 95%, no condensation |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx |
