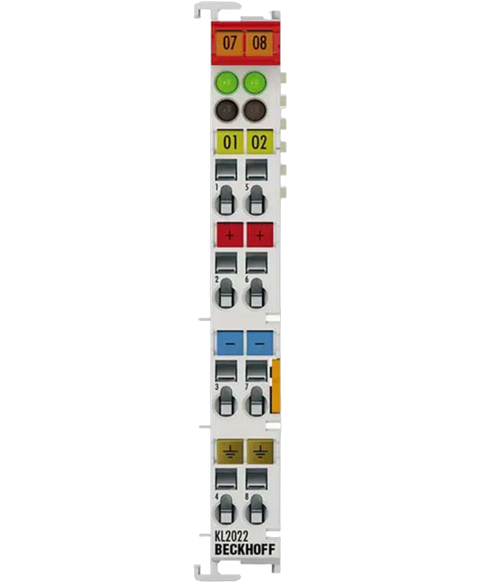

Beckhoff KL2022
BUS TERMINAL, 2-CHANNEL, DIGITAL OUTPUT, 4-WIRE SYSTEM, 24 VDC, 2 AMP, DIN RAIL MOUNTING, 0 TO +55 DEGREE C, IP20
This Beckhoff KL2022 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805640759.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | KL2022 |
| Outputs | 2 digital outputs |
| Nominal voltage | 24 V DC (−15%/+20%) |
| Max. output current | 2.0 A per channel, short‑circuit proof |
| Load types | Ohmic, inductive, lamp load |
| Electrical isolation | 500 V (K‑bus/field potential) |
| Current consumption (power contacts) | typ. 20 mA + load |
| Current consumption (K‑bus) | typ. 5 mA |
| Process image bit width | 2 outputs |
| Configuration | No address or configuration setting |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Weight | approx. 55 g |
| Material | Polycarbonate |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Connection technology | 4‑wire |
| Side‑by‑side mounting | Double slot and key connection |
| Wiring actuation | Spring actuation by screwdriver |
| Operating temperature | 0 to 55°C |
| Storage temperature | −25 to +85°C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Standards (EMC) | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Vibration/Shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
