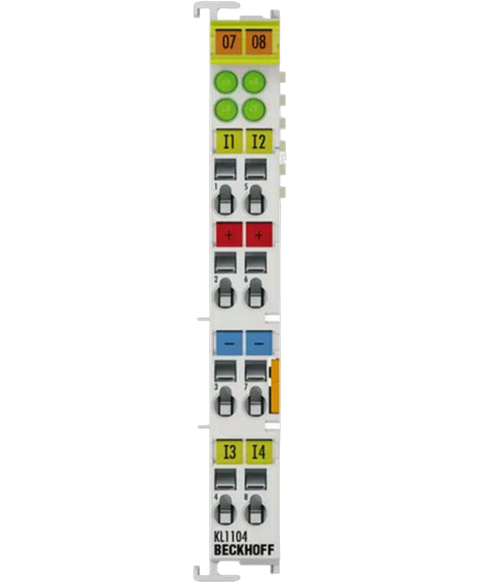

Beckhoff KL1104
Digital input terminal, 4-channel, 24VDC, filter 3.0 ms, 2 inputs 3-wire system, 2 inputs 1-wire system
This Beckhoff KL1104 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Bus terminal range and is referenced internally as PartLogic SKU PL26805598935.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | KL1104 |
| Input channels | 4 digital inputs |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Input spec | EN 61131-2, type 1 |
| “0” signal voltage | -3…+5 V |
| “1” signal voltage | 15…30 V |
| Input filter | typ. 3 ms |
| Input current | typ. 5 mA |
| K‑bus current consumption | typ. 5 mA |
| Electrical isolation | 500 V (K‑bus/field potential) |
| Process image width | 4 inputs |
| Connection technology | 2-/3-wire |
| Mounting | 35 mm DIN rail, EN 60715 |
| Protection rating | IP20 |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 55 g |
| Material | Polycarbonate |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, UL, ATEX, IECEx, CCC, DNV |
| Installation features | Side-by-side mounting via double slot and key connection |
| Sensor supply | +24 V DC and 0 V DC on terminal |
