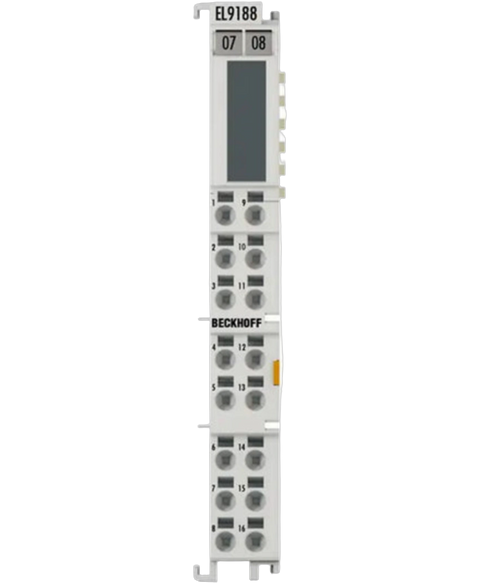

Beckhoff EL9188
Potential distribution terminal, 16-channel, 10A, 24VDC, 12mm housing width, -25 to +60 degrees c
This Beckhoff EL9188 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL27199009610.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL9188 |
| Technology | Potential distribution terminal |
| Bit width in process image | 0 |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Housing width | 12 mm |
| Material | Polycarbonate |
| Design form | HD housing with signal LEDs |
| Installation | 35 mm DIN rail, EN 60715, with lock |
| Side-by-side mounting | Yes, on EtherCAT Terminals, left without PE |
| Connection facility to additional power contact | 16 |
| Nominal voltage | ≤ 60 V DC |
| Current load (power contacts) | Imax 10 A |
| Electrical isolation | 500 V (E-bus/field potential) |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Stripping length | 8–9 mm |
| Conductor types | Solid wire, stranded wire, ferrule |
| Conductor connection | Solid: direct plug-in; stranded/ferrule: spring actuation by screwdriver |
| Rated cross-section (s) | 0.08–1.5 mm² (AWG 28–16) |
| Rated cross-section (st) | 0.25–1.5 mm² (AWG 22–16) |
| Rated cross-section (f) | 0.14–0.75 mm² (AWG 26–19) |
| Weight | Approx. 60 g |
| Approvals/markings | CE, UL, ATEX, IECEx |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
| Nominal outputs | 16 x 24 V contact |
