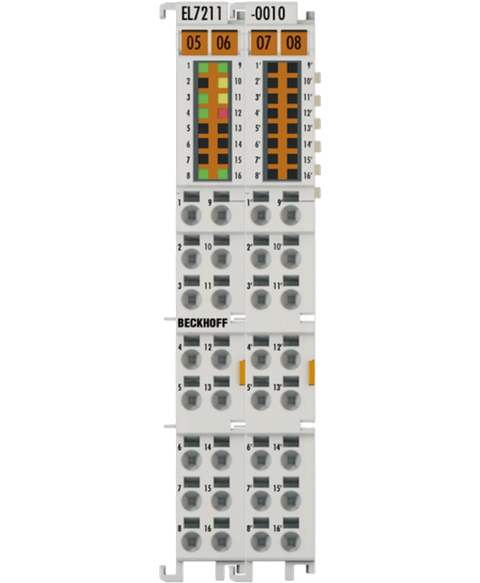

Beckhoff EL7211-0010
Ethercat terminal, 1-channel motion interface, servomotor, 48 v dc, 4.5 a, oct
This Beckhoff EL7211-0010 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805657395.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | EL7211-0010 |
| Form factor | EL-24-2x16pin HD housing |
| Dimensions | 24 x 100 x 68 mm |
| Weight | approx. 95 g |
| Load type | Permanent magnet three-phase synchronous motor |
| Channels | 1 |
| Outputs | Servomotor, motor brake |
| Electronics supply | 24 V DC via power contacts |
| Power supply | 8–48 V DC external |
| Output current (rms) | 4.5 A |
| Peak current (rms) | 9.0 A for 1 s |
| Motor brake output | 24 V DC, max. 0.5 A |
| Rotating field frequency | 0–599 Hz |
| PWM clock frequency | 16 kHz |
| Current controller frequency | 32 kHz |
| Speed controller frequency | 16 kHz |
| Inputs | 2 x end position, 1 x feedback |
| E-bus current | typ. 120 mA |
| Power contacts current | typ. 50 mA + brake holding current |
| Electrical isolation | 500 V (E-bus/field potential) |
| Protection rating | IP20 |
| Operating temperature | 0 to +55 °C |
| Storage temperature | -25 to +85 °C |
| Relative humidity | Up to 95%, no condensation |
| Approvals/markings | CE, UL |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/shock | EN 60068-2-6 / EN 60068-2-27 |
| Installation | 35 mm DIN rail (EN 60715) with lock |
| Side-by-side mounting | Double slot and key connection |
| Current load power contacts | Imax 10 A |
| Stripping length | 8–9 mm |
