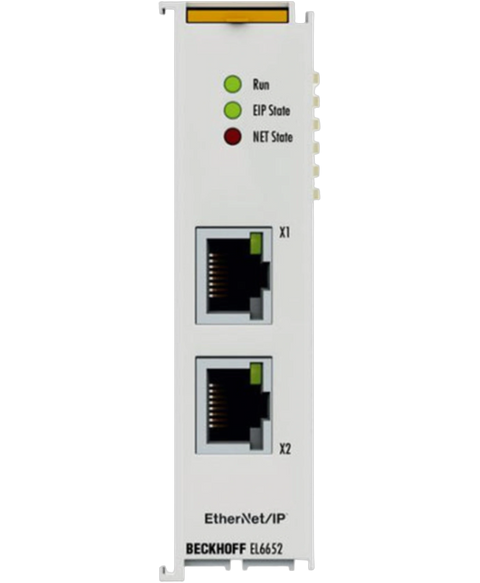

Beckhoff EL6652-0010
Ethercat terminal, 2-port communication interface, ethernet,ip, 100 base-tx ethernet, 2x RJ45, IP20
This Beckhoff EL6652-0010 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805654530.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | EL6652-0010 |
| Interface | EtherNet/IP adapter terminal |
| Ethernet ports | 2 x RJ45, switched |
| Ethernet standard | 100BASE-TX |
| Max process data | 1 kbyte input / 1 kbyte output |
| Configuration | Via EtherCAT master |
| Special features | Multicast/unicast connection |
| Cable length | Up to 100 m twisted pair |
| Power supply | Via the E-bus |
| E-bus current | typ. 400 mA |
| Electrical isolation | 500 V (E-bus/Ethernet) |
| Diagnostics | Status LEDs |
| Operating temperature | 0 to 55 °C |
| Storage temperature | -25 to +85 °C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Approvals/Markings | CE, UL |
| Housing | EL-24 compact terminal with signal LEDs |
| Material | Polycarbonate |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Wiring | Specific push-in connection |
| Dimensions (W x H x D) | 24 x 100 x 52 mm |
| Weight | approx. 75 g |
