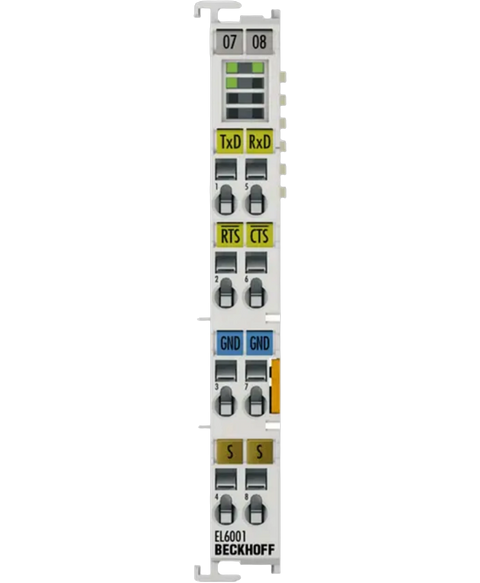

Beckhoff EL6001
Serial interface, terminal contact, 1 x rs232, 500 v, 120mA, -25 to +60 degree c, IP20
This Beckhoff EL6001 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805759804.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL6001 |
| Interface | 1 × RS232 |
| Data channels | 2 (TxD, RxD), full duplex |
| Baud rates | 2400…115,200 baud; default 9600 baud, 8 data bits, no parity, 1 stop bit |
| Receive buffer | 864 bytes |
| Transmit buffer | 128 bytes |
| Electrical isolation | 500 V (E‑bus/signal voltage) |
| Power supply | Via the E‑bus |
| Current consumption (E‑bus) | typ. 120 mA |
| Cable length | max. 15 m |
| Bit distortion | < 3% |
| Connection technology | Terminal contact |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Material | Polycarbonate |
| Installation | 35 mm DIN rail (EN 60715) with lock |
| Protection rating | IP20 |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
| EX marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| Weight | approx. 55 g |
