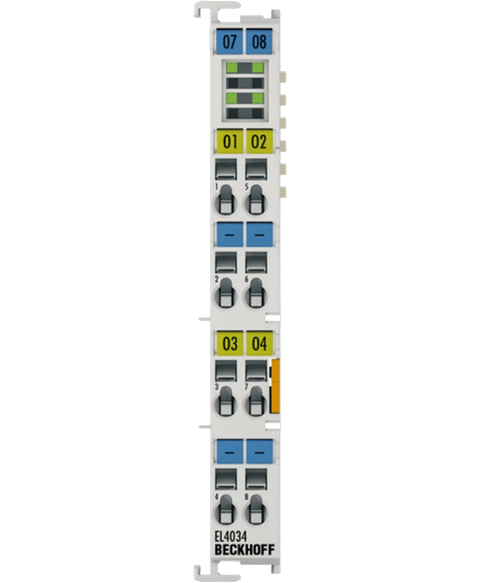

Beckhoff EL4034
Analog output terminal, ethercat terminal, 4 channel, -10 v to +10 v signal voltage, 24VDC supply, 12 bit, 2-wire (single-ended), IP20
This Beckhoff EL4034 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805667889.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL4034 |
| Output channels | 4 |
| Output range | −10…+10 V |
| Resolution | 12 bit |
| Load | > 5 kΩ, short-circuit proof |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Distributed Clocks | Yes, precision << 1 µs |
| Conversion time | ~ 250 µs |
| Bit width (process image) | 4 x 16-bit AO output |
| Power supply | 24 V DC via power contacts |
| Current consumption (power contacts) | typ. 40 mA |
| Current consumption (E-bus) | typ. 140 mA |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 85 g |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, no condensation |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Protection rating | IP20 |
| Installation | 35 mm DIN rail, EN 60715 |
| Wiring | Spring actuation by screwdriver; AWG28…14 (st), AWG28…14 (s), AWG26…16 (f) |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
| Common ground | Outputs share common ground potential |
