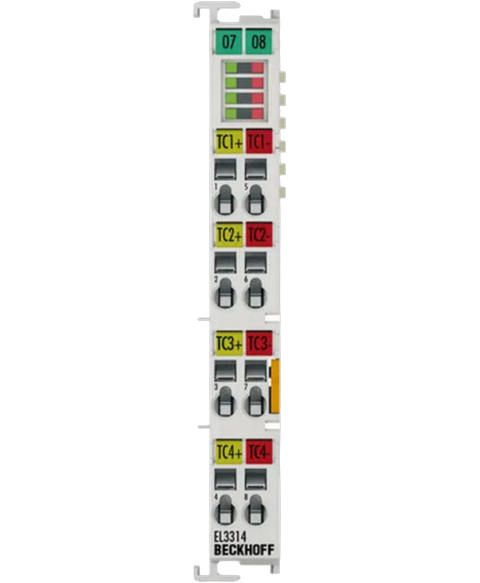

Beckhoff EL3314
Thermocouple input terminal, 4-channel, 16 bit, preset to type k, with wire breakage detection, IP20
This Beckhoff EL3314 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26801464080.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL3314 |
| Input channels | 4 thermocouple |
| Resolution | 16 bit, adjustable representation |
| Voltage measurement range | ±30/±60/±75 mV |
| Filter / conversion time | Approx. 2.5 s to 10 ms, default ~250 ms |
| Cold junction compensation | Internal and external options |
| Wire break detection | Channel‑by‑channel with LEDs |
| Connection method | 2‑wire |
| Input filter limit frequency | Typical 1 kHz |
| Electrical isolation | 500 V (E‑bus/signal) |
| Power supply | Via E‑bus |
| Current consumption (E‑bus) | Typical 200 mA |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | Approx. 60 g |
| Operating temperature | −25 to +60 °C |
| Storage temperature | −40 to +85 °C |
| Relative humidity | Up to 95%, no condensation |
| Protection rating | IP20 |
| Mounting | 35 mm DIN rail, EN 60715 |
| Approvals / markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| ATEX / IECEx marking | Ex ec IIC T4 Gc; ATEX II 3 G |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Vibration / shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
