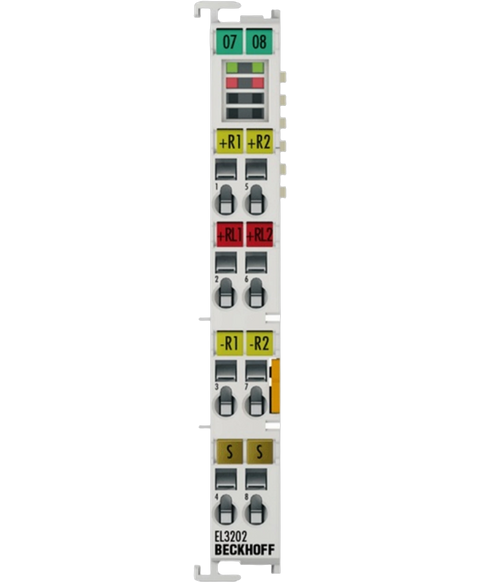

Beckhoff EL3202
Input terminal, pt100 (rtd), 2-channel, for resistance sensors, 16 bit, 2-, 3-wire system, 2 x 32 bit rtd input, IP20
This Beckhoff EL3202 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805634054.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL3202 |
| Channels | 2 RTD inputs |
| Resolution | 0.1 °C per digit (16‑bit) |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, KTY, resistance 10 Ω…4 kΩ |
| Connection method | 2‑ or 3‑wire (default 2‑wire) |
| Conversion time | approx. 85 ms default, 2…800 ms configurable |
| Input filter limit frequency | typ. 1 kHz |
| Measuring current | < 0.5 mA (load‑dependent) |
| Measurement uncertainty | < ±0.5 °C for Pt sensors |
| Process image | 2 × 32‑bit RTD input |
| Power supply | Via E‑bus |
| Electrical isolation | 500 V (E‑bus/signal) |
| E‑bus current consumption | typ. 190 mA |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, non‑condensing |
| Protection rating | IP20 |
| Dimensions (W × H × D) | 12 mm × 100 mm × 68 mm |
| Weight | approx. 60 g |
| Material | Polycarbonate |
| Mounting | DIN rail EN 60715, with lock |
| Current load power contacts | 10 A |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
| Explosion marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Vibration/shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
