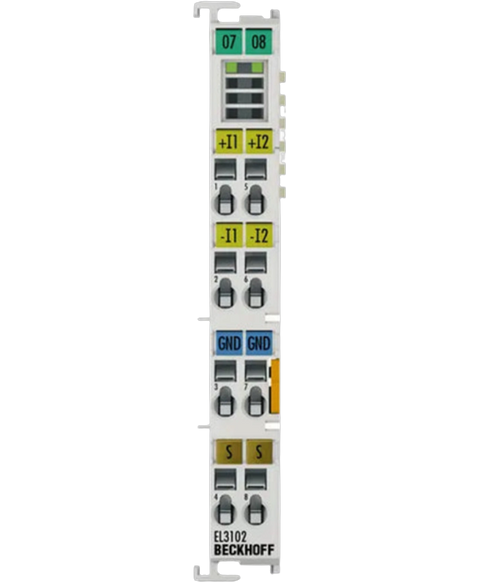

Beckhoff EL3102
Ethercat terminal, 2-channel, analog input, differential input, 16 bit resolution, -10 to +10 v, 170mA, -25 to +60 degree c, IP20
This Beckhoff EL3102 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805596182.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL3102 |
| Input channels | 2, differential |
| Signal voltage range | −10…+10 V |
| Resolution | 16 bit (incl. sign) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | approx. 60 g |
| Mounting | 35 mm DIN rail, EN 60715 |
| Protection rating | IP20 |
| Power supply | Via the E-bus |
| Current consumption (E-bus) | typ. 170 mA |
| Process image input width | 8 byte |
| Input filter limit frequency | 5 kHz |
| Conversion time | ~60 µs (fast mode ~40 µs) |
| Distributed clocks | Yes, precision << 1 µs |
| Internal resistance | > 200 kΩ |
| Common mode voltage | max. 35 V relative to internal GND |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
| Material | Polycarbonate |
