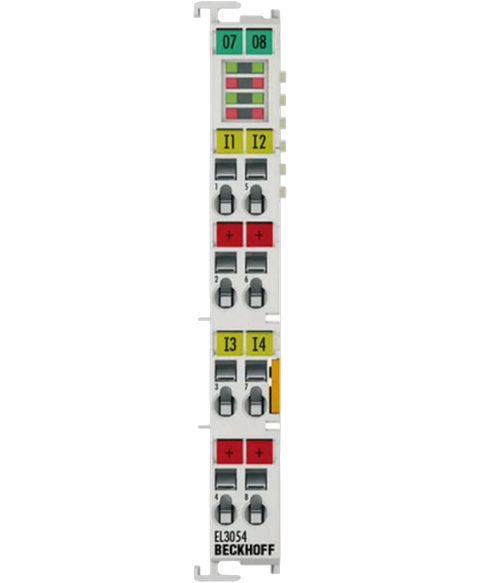

Beckhoff EL3054
Ethercat terminal, 4-channel, analog input, 30 v, 4-20mA, 12 bit resolution, single-ended, DIN rail mounting, -25 to +60 degree c, IP20
This Beckhoff EL3054 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805522695.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | EL3054 |
| Input channels | 4 (single-ended) |
| Signal range | 4–20 mA |
| Resolution | 12 bit (16-bit presentation incl. sign) |
| Conversion time | 0.625 ms default, configurable, multiplex |
| Input filter limit frequency | 1 kHz |
| Internal resistance | typ. 85 Ω |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Dielectric strength | max. 30 V |
| Process image input width | 16 byte |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | approx. 60 g |
| Material | Polycarbonate |
| Mounting | 35 mm DIN rail (EN 60715) with lock |
| Protection rating | IP20 |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Current consumption (E-bus) | typ. 130 mA |
| Current load, power contacts | 10 A |
| Special features | Standard/compact process image, activatable FIR/IIR filters, limit value monitoring |
| Approvals/markings | CE, ATEX, IECEx |
| Vibration/shock resistance | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
