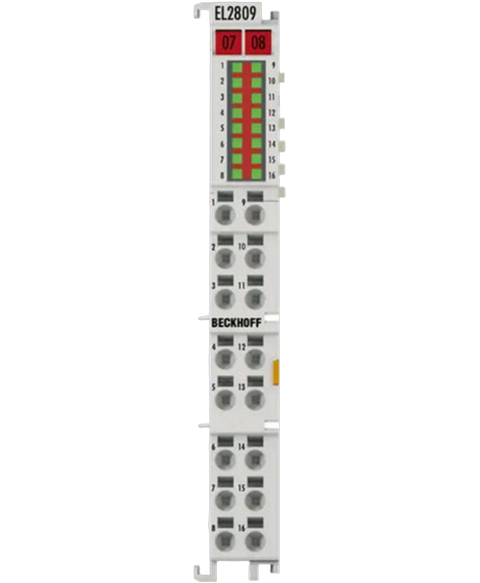

Beckhoff EL2809
Digital output terminal, ethercat, 1 wire, 16-channel, 16 outputs, 24VDC, 0.5A, -25 to +60 degree c, IP20
This Beckhoff EL2809 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26801460617.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | BECKHOFF |
| Model | EL2809 |
| Number of outputs | 16 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Max. output current | 0.5 A per channel, short-circuit proof |
| Load types | Ohmic, inductive, lamp load |
| Switching times | typ. TON 60 µs, typ. TOFF 300 µs |
| Electrical isolation | 500 V (E-bus/field potential) |
| Bit width | 16 outputs |
| Connection technology | 1-wire |
| Power contacts current | 10 A |
| E-bus current consumption | typ. 140 mA |
| Power contacts current consumption | typ. 35 mA + load |
| Breaking energy | < 150 mJ/channel |
| Reverse voltage protection | Yes |
| Short-circuit current | typ. < 2 A |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | approx. 70 g |
| Housing | HD 12 mm with signal LEDs |
| Installation | 35 mm DIN rail (EN 60715) with lock |
| Protection rating | IP20 |
| Operating temperature | -25 to +60 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | Up to 95%, non-condensing |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| ATEX / IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
| Mounting connection | Double slot and key |
| Stripping length | 8–9 mm |
