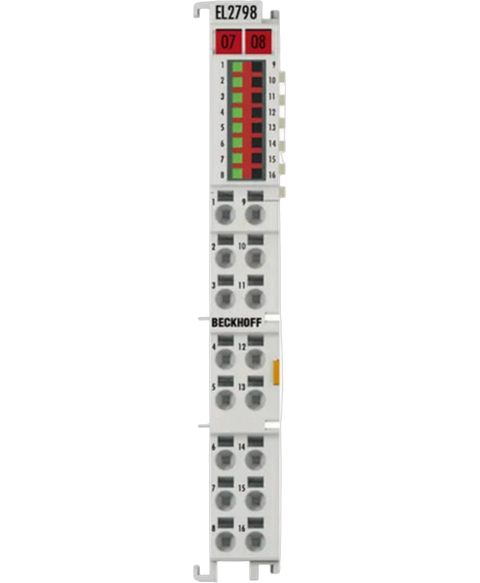

Beckhoff EL2798
ETHERCAT TERMINAL, 8 CHANNEL, SOLID STATE RELAY OUTPUT, 30 VAC, 48 VDC, 2 AMP, 140 MA E-BUS, POTENTIAL-FREE, 0 TO +55 DEGREES C
This Beckhoff EL2798 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805660527.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL2798 |
| Outputs | 8 x make contacts, solid-state relay |
| Nominal voltage | 30 V AC/DC for general loads; 48 V DC for ohmic loads |
| Max output current | 2 A per channel (Σ 10 A) |
| Power contacts current | 10 A |
| Peak current | 5 A (100 ms), < 50 A (10 ms) |
| Switching times | TON typ. 1.8 ms (max 5 ms), TOFF typ. 30 ms (max 50 ms) |
| On-resistance | typ. 0.03 Ω |
| Short-circuit behavior | Not short-circuit proof, see peak current |
| Electrical isolation | 500 V (E-bus/field potential) |
| Isolation voltage (channel/channel) | < 200 V |
| Breakdown voltage | 80 V |
| E-bus current consumption | typ. 140 mA |
| Operating temperature | 0…55°C |
| Storage temperature | -25…+85°C |
| Relative humidity | 95% non-condensing |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Protection rating | IP20 |
| Mounting | 35 mm DIN rail, EN 60715, with lock |
| Housing | HD housing with signal LEDs |
| Connection technology | 2-wire |
| Conductor sizes | Solid AWG28…16; Stranded AWG22…16; Ferrule AWG26…19 |
| Stripping length | 8…9 mm |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
