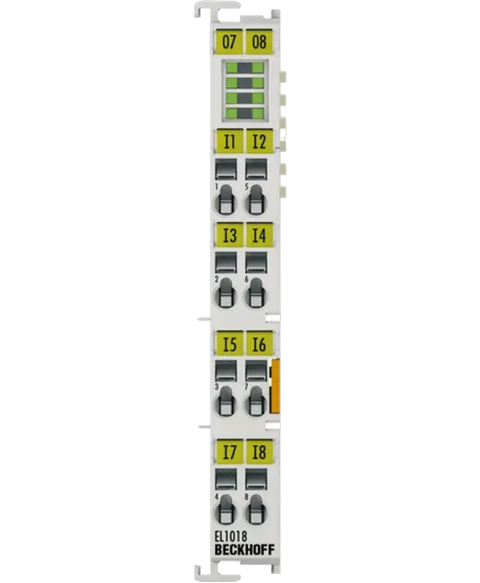

Beckhoff EL1018
Ethercat terminal, 8-channel digital input, 24VDC, filter 10 us, 1-wire system, -25 to +60 degrees c, IP20
This Beckhoff EL1018 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805523453.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EL1018 |
| Input channels | 8 digital inputs |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Logic 0 voltage | -3…+5 V (type 3) |
| Logic 1 voltage | 11…30 V (type 3) |
| Input current | typ. 3 mA (EN 61131-2 type 3) |
| Input filter | typ. 10 µs |
| Electrical isolation | 500 V (E‑bus/field potential) |
| Connection technology | 1‑wire |
| Power contacts current | 10 A |
| Current consumption (E‑bus) | typ. 90 mA |
| Current consumption (power contacts) | typ. 2 mA + load |
| Mounting | 35 mm DIN rail, EN 60715 |
| Wiring | Spring actuation; solid AWG28–14, stranded AWG28–14, ferrule AWG26–16 |
| Protection rating | IP20 |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc; Ex ec IIC T4 Gc |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Weight | approx. 55 g |
