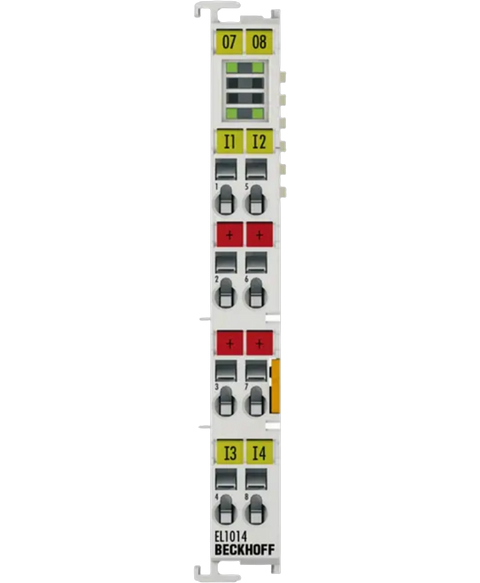

Beckhoff EL1014
DIGITAL INPUT TERMINAL, 24 VDC, 10 US INPUT FILTER, 4-CHANNEL, 2 WIRE CONNECTION, -40 TO 85 DEGREES C, IP20
This Beckhoff EL1014 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26805678782.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | EL1014 |
| Input channels | 4 digital inputs |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Input specification | EN 61131-2, type 1/3 |
| “0” signal voltage | -3…+5 V (type 3) |
| “1” signal voltage | 11…30 V (type 3) |
| Input current | typ. 3 mA (type 3) |
| Input filter | typ. 10 µs |
| Connection technology | 2‑wire |
| Electrical isolation | 500 V (E‑bus/field potential) |
| Current consumption (E‑bus) | typ. 90 mA |
| Current consumption (power contacts) | typ. 2 mA + load |
| Power contacts current | 10 A max |
| Dimensions | 12 mm x 100 mm x 68 mm |
| Weight | approx. 50 g |
| Material | Polycarbonate |
| Mounting | 35 mm DIN rail, EN 60715, with lock |
| Protection rating | IP20 |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| ATEX/IECEx marking | II 3 G Ex ec IIC T4 Gc / Ex ec IIC T4 Gc |
| Configuration | No address or configuration setting |
| Side-by-side mounting | Double slot and key connection |
