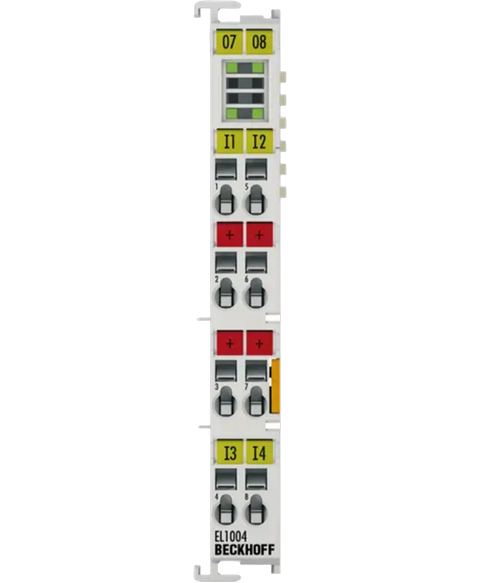

Beckhoff EL1004
Digital input terminal, ethercat, 2 wire, 4-channel, 4 inputs, 24VDC, filter 3.0 ms, -25 to +60 degrees c, IP20
This Beckhoff EL1004 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat terminal range and is referenced internally as PartLogic SKU PL26801443283.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | EL1004 |
| I/O type | Digital input, 4 channels |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Input specification | EN 61131-2 type 1/3 |
| “0” signal voltage | -3…+5 V (type 3) |
| “1” signal voltage | 11…30 V (type 3) |
| Input current | typ. 3 mA (type 3) |
| Input filter | typ. 3 ms |
| Connection technology | 2-wire |
| Bit width | 4 inputs |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption (E-bus) | typ. 90 mA |
| Current consumption (power contacts) | typ. 2 mA + load |
| Power contacts current | 10 A |
| Dimensions | 12 x 100 x 68 mm (W x H x D) |
| Weight | approx. 50 g |
| Material | Polycarbonate |
| Installation | 35 mm DIN rail, EN 60715 |
| Protection rating | IP20 |
| Operating temperature | -25…+60 °C |
| Storage temperature | -40…+85 °C |
| Relative humidity | 95%, no condensation |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| EX marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc; cFMus Class I Div 2 Groups A-D; Class I Zone 2 AEx ec IIC T4 Gc |
