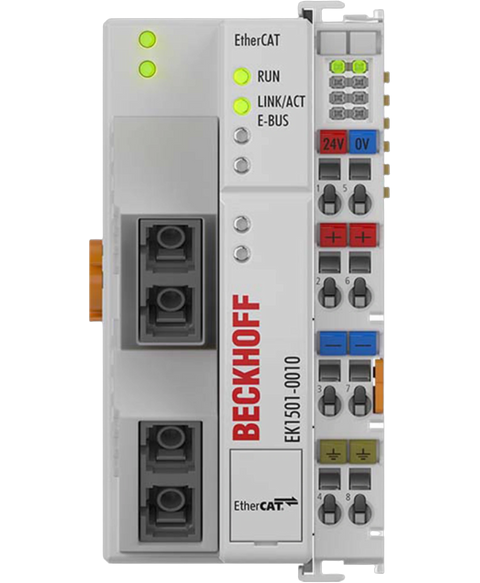

Beckhoff EK1501-0010
Ethercat coupler with id switch, single-mode fiber optic for e-bus terminals (elxxxx), distance between stations up to 20 km, coupler, ethercat
This Beckhoff EK1501-0010 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat coupler range and is referenced internally as PartLogic SKU PL26805637998.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EK1501-0010 |
| Function | EtherCAT coupler with ID switch, single‑mode fiber optic |
| Data rate | 100 Mbit/s (100BASE‑FX) |
| Fiber type | Single‑mode 9/125 µm |
| Bus interface | 2 x SC duplex |
| Max segment distance | Up to 20,000 m |
| Delay | Approx. 1 µs |
| Power supply | 24 V DC (−15%/+20%) |
| Current consumption (US) | 150 mA + (Σ E‑bus current/4) |
| E‑bus current supply | 2000 mA (5 V) |
| Power contacts | Max. 24 V DC / max. 10 A |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Dimensions | 51 x 100 x 69 mm (W x H x D) |
| Weight | Approx. 190 g |
| Material | Polycarbonate |
| Operating temperature | −25…+60 °C |
| Storage temperature | −40…+85 °C |
| Relative humidity | 95%, no condensation |
| Protection rating | IP20 |
| Installation | 35 mm DIN rail (EN 60715), with lock |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx |
| ATEX/IECEx marking | ATEX II 3 G Ex ec IIC T4 Gc; IECEx Ex ec IIC T4 Gc |
| Max EtherCAT Terminals | Up to 65,534 |
| Configurable IDs | 4096 |
| Housing code | EK-51-8pin |
