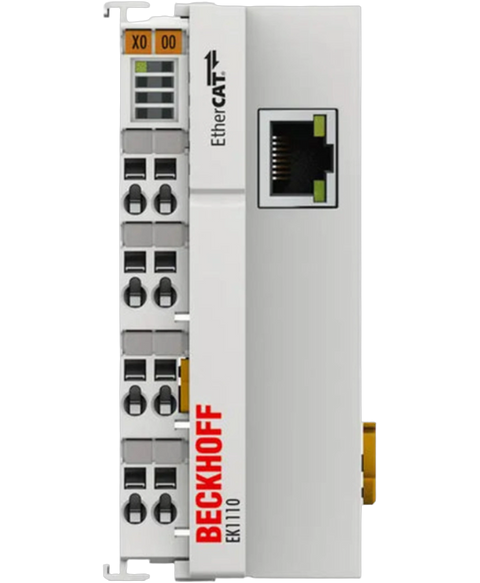

Beckhoff EK1110
ETHERCAT EXTENSION, 1 X RJ45 BUS INTERFACE, CONNECTION LENGTHS UP TO 100 M, 130 MA, -25 TO +60 DEGREE C, IP20
This Beckhoff EK1110 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat coupler range and is referenced internally as PartLogic SKU PL26805636537.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model number | EK1110 |
| Function | EtherCAT extension coupler |
| Bus interface | 1 x RJ45 |
| Data rate | 100 Mbit/s |
| Delay | Approx. 1 µs |
| Connection length | Up to 100 m (100BASE-TX) |
| Data medium | Shielded Ethernet/EtherCAT cable, min. Cat5 |
| Power supply | From E‑bus |
| Current consumption | Typ. 130 mA (E‑bus) |
| Electrical isolation | 500 V (supply/Ethernet) |
| Dimensions (W x H x D) | 44 x 100 x 68 mm |
| Weight | Approx. 50 g |
| Operating temperature | -25 to +60 °C |
| Storage temperature | -40 to +85 °C |
| Protection rating | IP20 |
| Relative humidity | 95%, no condensation |
| EMC | EN 61000-6-2 / EN 61000-6-4 |
| Vibration/Shock | EN 60068-2-6 / EN 60068-2-27 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV |
| ATEX marking | II 3 G Ex ec IIC T4 Gc |
| IECEx marking | Ex ec IIC T4 Gc |
| Housing | Compact terminal housing with signal LEDs; EK-44-8pin |
| Installation | 35 mm DIN rail (EN 60715) with lock |
