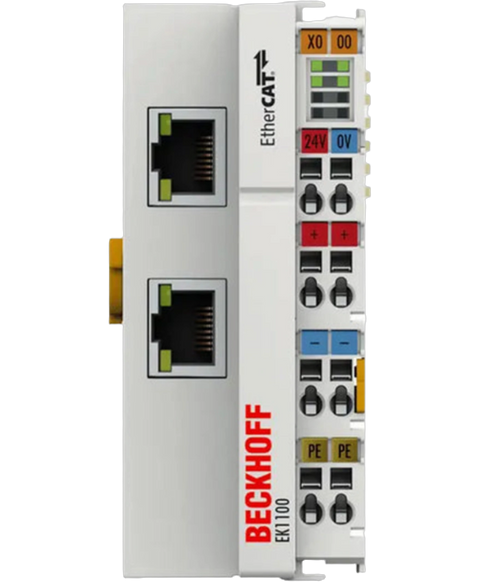

Beckhoff EK1100
Ethercat coupler, e-bus terminal, RJ45 connection, voltage: 24 volt dc, max 4.2 gb addressable I,O point, -25 to +60 degrees c, IP20
This Beckhoff EK1100 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Ethercat coupler range and is referenced internally as PartLogic SKU PL26801476129.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Model | EK1100 |
| Protocol | EtherCAT (100BASE‑TX) |
| Bus Interface | 2 x RJ45 |
| Data Rate | 100 Mbit/s |
| Dimensions | 44 x 100 x 68 mm |
| Material | Polycarbonate |
| Power Supply | 24 V DC (−15%/+20%) |
| Current Consumption (US) | 70 mA + (Σ E‑bus current/4) |
| E‑bus Current Supply | 5 V, 2 A max |
| Power Contacts | Max. 24 V DC / 10 A |
| Electrical Isolation | 500 V (power contact/supply/Ethernet) |
| Operating Temperature | −25 to +60 °C |
| Storage Temperature | −40 to +85 °C |
| Relative Humidity | Up to 95%, non‑condensing |
| Protection Rating | IP20 |
| Mounting | 35 mm DIN rail, EN 60715 |
| EMC | EN 61000‑6‑2 / EN 61000‑6‑4 |
| Vibration/Shock | EN 60068‑2‑6 / EN 60068‑2‑27 |
| Approvals/Markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Max Cable Length | 100 m (100BASE‑TX) |
