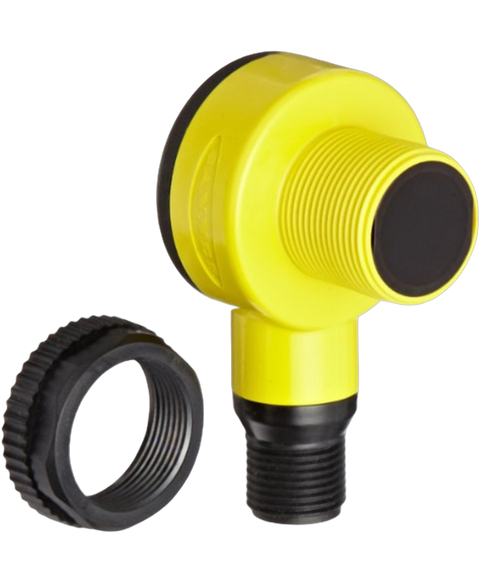

Banner T18SP6DQ
Discontinued by manufacturer, self-contained barrel-mount sensor, ez-beam, t18 series, diffuse, 500mm range, 10-30VDC input, complementary pnp output, euro m12 4-pin integral qd, replaced by t18-2vpdlir-q8 (807780), (34631)
This Banner T18SP6DQ is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26805613360.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Body Material | PBT, Polyester |
| Contact Current Rating | 150 mA |
| Height | 41.7 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage (DC) | 10 V |
| Number of Pins | 4 |
| Output Current | 150 mA |
| Ratings | IP69K |
| REACH SVHC | No |
| Response Time | 1.5 ms |
| RoHS | Compliant |
| Width | 30 mm |
