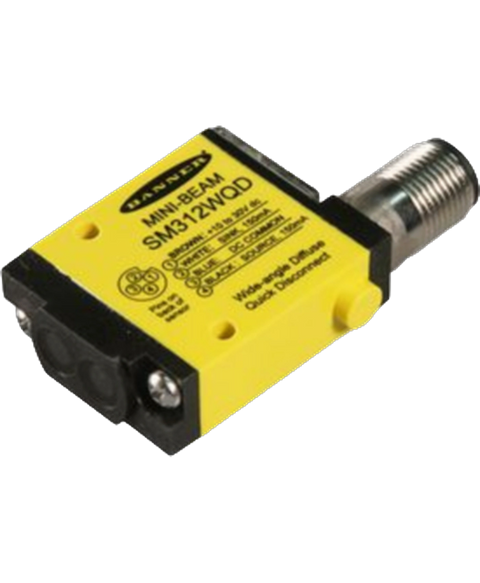

Banner SM312WQD
Photoelectric sensor, diffuse, mini-beam, range: 130mm, input 10-30VDC, output bipolar, 1 npn , 1 pnp, euro m12 4-pin integral qd, (26892)
This Banner SM312WQD is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26801436236.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Length | 58.2 mm |
| Material | PBT, Polyester, Thermoplastic |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -20 °C |
| Min Supply Voltage (DC) | 10 V |
| Mount | Panel |
| Number of Pins | 4 |
| Output Current | 150 mA |
| Ratings | IP67 |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensing Distance | 130 mm |
