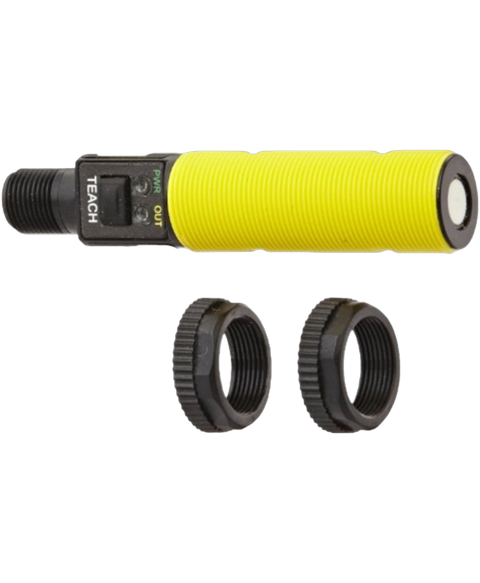

Banner S18UBA
Banner S18U Ultrasonic Proximity Sensor, 18mm Cylindrical, NPN,PNP NO,NC, M12, 30-300mm Range
This Banner S18UBA is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26805591298.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 65 mA |
| Diameter | 18 mm |
| Frequency | 300 kHz |
| Housing Material | PBT |
| Length | 90.9 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Outside Diameter | 18 mm |
| Ratings | IP67 |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensing Method | Ultrasonic |
| Switching Current | 100 mA |
| Switching Frequency | 100 Hz |
| Termination | Connector |
| Thread Size | M12 |
