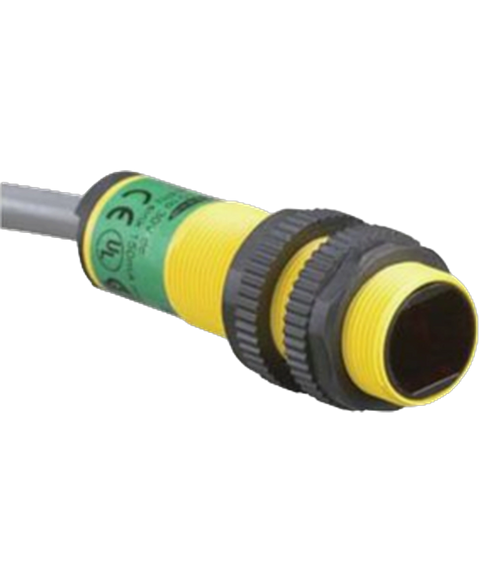

Banner S18SP6L
Photoelectric retroreflective sensor, 2 m range, 10-330VDC, complementary pnp output, infrared led, non-polarized, 2 m cable length, light,dark operation, -40 to +70 degrees c, IP67,69k, (29411)
This Banner S18SP6L is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26805596164.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, UL |
| Body Material | Polyester, Thermoplastic |
| Contact Current Rating | 150 mA |
| Housing Material | PBT |
| Length | 59.2 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage (DC) | 10 V |
| Mount | Panel |
| Number of Pins | 4 |
| Output Current | 150 mA |
| Ratings | IP67, IP69K |
| REACH SVHC | No |
| Response Time | 3 ms |
| RoHS | Compliant |
| Termination | Cable |
