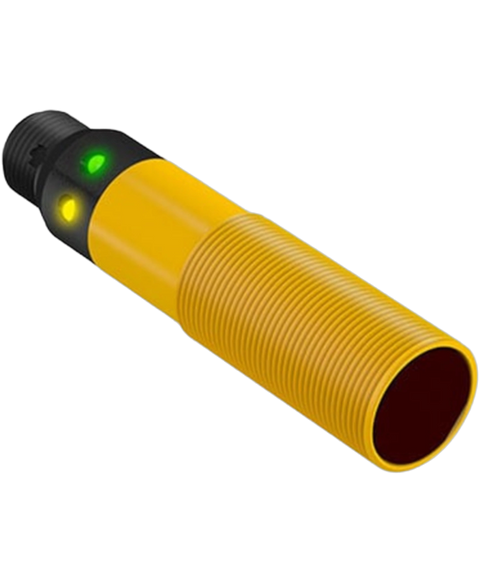

Banner S18SN6FF100Q
Photoelectric sensor, fixed field, range 100mm, 10-30VDC, complementary npn, euro m12 4-pin integral qd
This Banner S18SN6FF100Q is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26801427272.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Contact Current Rating | 150 mA |
| Housing Material | PBT |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage (DC) | 10 V |
| Number of Pins | 4 |
| Output Current | 150 mA |
| Ratings | IP69K |
| REACH SVHC | No |
| RoHS | Compliant |
| Sensing Method | Infrared (IR) |
