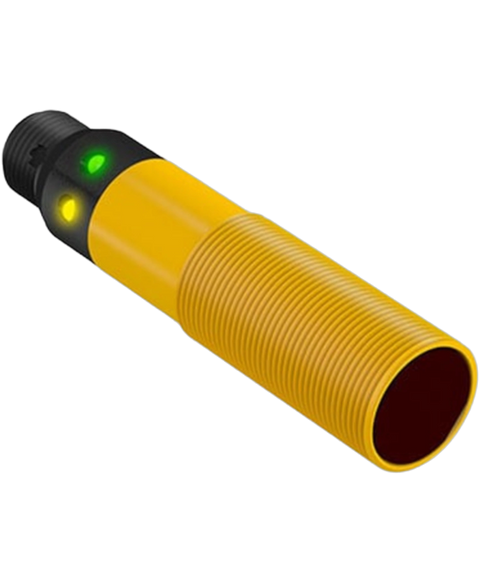

Banner S18SN6DQ
Photoelectric sensor, ez-beam s18 series, diffuse range: 100mm, input 10-30VDC, complementary npn, euro m12, 4-pin integral qd, 29505
This Banner S18SN6DQ is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26805618457.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, CSA, IEC, UL |
| Contact Current Rating | 150 mA |
| Length | 59.2 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage (DC) | 10 V |
| Number of Pins | 4 |
| Output Current | 150 mA |
| Ratings | IP69K |
| REACH SVHC | No |
| Response Time | 3 ms |
| RoHS | Compliant |
