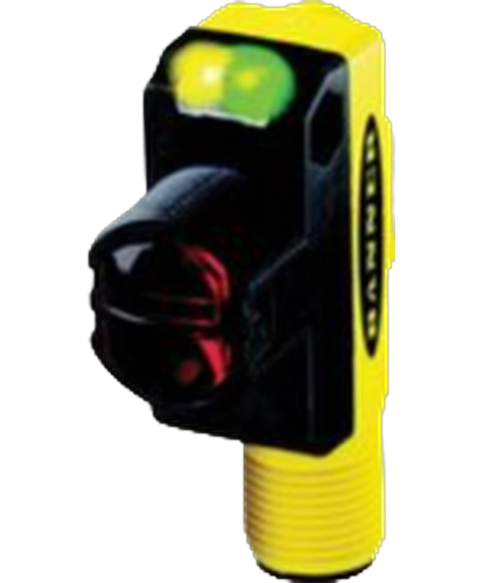

Banner QS18VP6LP
Photelectic sensor, world-beam, polarized retro, range 3.5 m, input 10-30VDC, output complementary pnp, 2 m (6.5 ft) cable, (61630)
This Banner QS18VP6LP is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26805602325.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CE, cULus |
| Body Material | ABS |
| Contact Current Rating | 100 mA |
| Length | 31 mm |
| Max Operating Temperature | 70 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -20 °C |
| Min Supply Voltage (DC) | 10 V |
| Mount | Panel |
| Number of Pins | 4 |
| Output Current | 100 mA |
| Ratings | IP67 |
| REACH SVHC | No |
| RoHS | Compliant |
| Termination | Cable |
