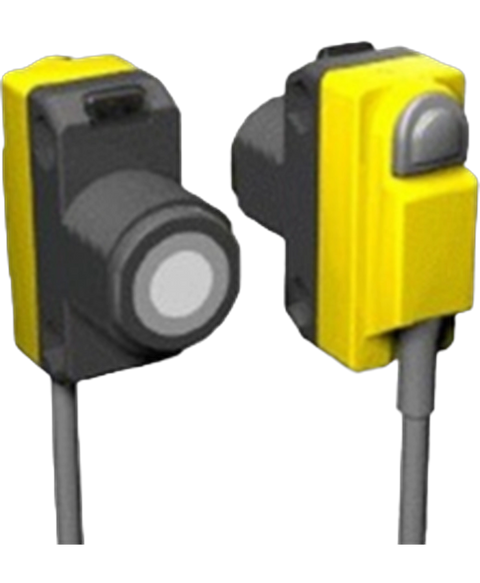

Banner QS18UNA
Ultrasonic sensor, world-beam qs18u, ultrasonic teach mode, 50-500mm range, 12-30VDC input, npn output, 2 m cable length, (73150)
This Banner QS18UNA is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric range and is referenced internally as PartLogic SKU PL26805603338.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Depth | 35 mm |
| Frequency | 300 kHz |
| Housing Material | ABS |
| Length | 33.5 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Operating Supply Voltage | 30 V |
| Ratings | IP67, IP68 |
| RoHS | Compliant |
| Sensing Method | Ultrasonic |
| Switching Current | 25 mA |
| Switching Frequency | 300 kHz |
| Termination | Cable |
| Width | 15 mm |
