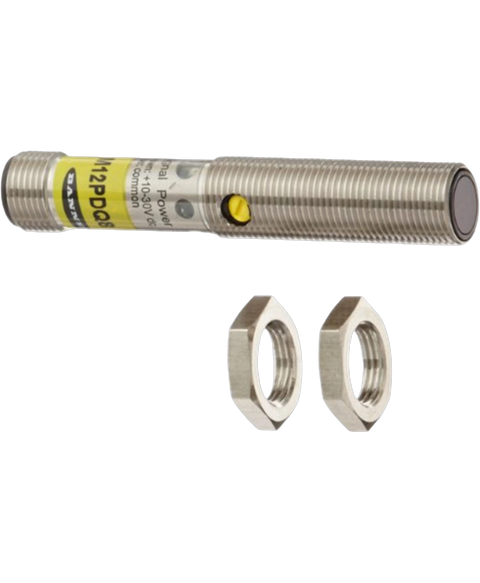

Banner M12PDQ8
Sensor, quick disconnect, diffuse (red), range: 400mm, input 10-30VDC, output: complementary solid-state pnp, integral m12, (77179)
This Banner M12PDQ8 is supplied brand new by PartLogic for industrial automation, machine feedback, position detection, measurement, monitoring and maintenance applications. It forms part of our Industrial automation > Sensors > Photoelectric > Mini beam range and is referenced internally as PartLogic SKU PL26805617976.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Body Material | Brass |
| Contact Current Rating | 20 mA |
| Max Operating Temperature | 60 °C |
| Max Supply Voltage (DC) | 30 V |
| Min Operating Temperature | -20 °C |
| Min Supply Voltage (DC) | 10 V |
| Number of Pins | 4 |
| Output Current | 100 mA |
| Ratings | IP67 |
| REACH SVHC | No |
| RoHS | Compliant |
