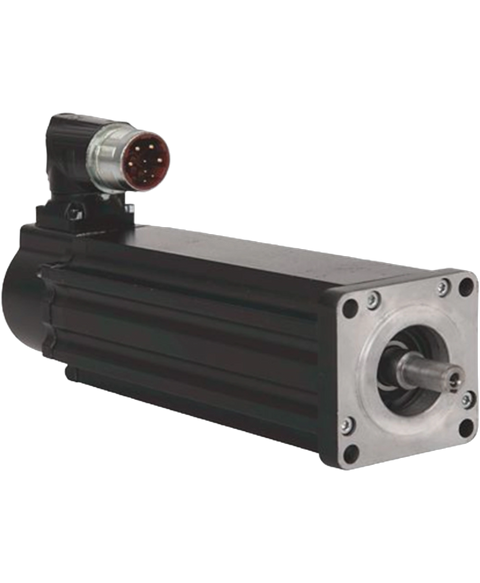

Allen Bradley VPL-B1652F-PJ14AA
The VPL-B1652F-PJ14AA servo motor is an Allen-Bradley,Rockwell Automation brushless servo motor from the VPL series. It comes with a 24 Volts DC holding brake, a shaft key, and a Speedtec DIN connector which can be rotated up to 325 degrees for flexibility. The VPL-B1652F-PJ14AA brushless servo motor is designed to be controlled by a servo drive and it is especially suitable for being controlled by Allen-Bradley servo drives from the Kinetix 5500 and Kinetix 5700 series. Its operating voltage rating is 400 Volts and its shaft speed rating is 4500 RPM. The VPL-B1652F-PJ14AA brushless servo motor’s shaft can be held at 0 RPM by a 24 Volts DC rated holding brake if necessary.
This Allen Bradley VPL-B1652F-PJ14AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26892038019.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-Inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1652F-PJ14AA |
| UPC | 885630934792 |
| Weight | 35.00 lbs (15.88 kg) |
| Voltage | 460VAC |
| Frame Size | 165 mm |
| Brake | No |
| Product Family | VPL Series Low Inertia servo motors |
| Motor Type | Brushless AC asynchronous motor |
| Rated Power | 4.77 kW (6.40 HP) |
| Continuous Stall Torque | 17.60 Nm (156 lb-in.) |
| Peak Stall Torque | 48.60 Nm (430 lb-in.) |
| Maximum operating speed | 4000 rpm |
| Encoder | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft Extension | Shaft key/No shaft seal |
| Compatible Servo Drives | Kinetix 5700, Kinetix 5500 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Rated Speed | 4500 RPM |
| Magnet Stacks | 2 |
| Feedback | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Shaft Key |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Brand | Allen Bradley |
