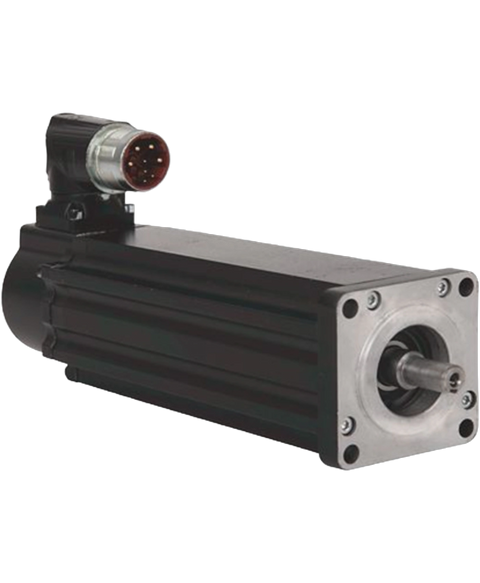

Allen Bradley VPL-B1306F-PJ14AA
The VPL-B1306F-PJ14AA servo motor is a brushless servo motor that has been designed and manufactured by Allen-Bradley,Rockwell Automation. It is a member of the VPL Servo Motors series and it uses 6 magnet stacks to operate with low inertia levels. The VPL-B1306F-PJ14AA brushless servo motor’s shaft can rotate at up to 4500 RPM, and it can also be held at 0 RPM if necessary by the motor’s 24 Volts DC rated holding brake. Note that this holding brake cannot and should not be used to stop the shaft while it is still spinning; it is only intended to hold the stopped shaft still. The VPL-B1306F-PJ14AA brushless servo motor also comes with a multi-turn feedback encoder and a shaft key.
This Allen Bradley VPL-B1306F-PJ14AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26892380988.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1306F-PJ14AA |
| UPC | 884951312043 |
| Weight | 29.19 lbs (13.24 kg) |
| Voltage | 400V |
| Frame Size | 130 mm |
| Rated Speed | 4500 rpm |
| Magnet Stacks | 6 |
| Feedback | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Shaft Key |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Brake | 24V DC |
| Brand | Allen Bradley |
