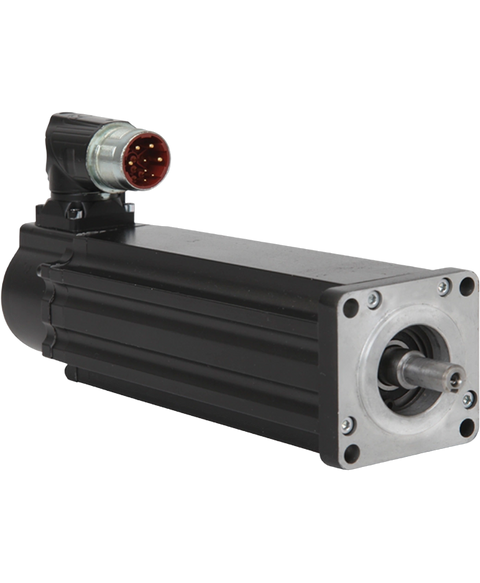

Allen Bradley VPL-B1153F-PK14AA
The VPL-B1153F-PK14AA motor is an Allen-Bradley servo motor from the Kinetix VPL series of servo motors. This servo motor is a brushless type of AC-powered servo motor. The VPL-B1153F-PK14AA servo motor operates with low levels of inertia. It has a smooth shaft and a 24 Volts DC rated brake. The rated speed of the VPL-B1153F-PK14AA brushless low-inertia servo motor is 4500 RPM.
This Allen Bradley VPL-B1153F-PK14AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26892267003.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1153F-PK14AA |
| UPC | 884951312340 |
| Weight | 15.00 lbs (6.80 kg) |
| Voltage | 460VAC |
| Frame Size | 115 mm |
| Brake | 24VDC holding brake |
| Product Family | VPL Series Low Inertia servo motors |
| Motor Type | Brushless AC asynchronous motor |
| Rated Power | 2.30 kW (3.08 HP) |
| Continuous Stall Torque | 6.55 Nm (58..0 lb-in.) |
| Peak Stall Torque | 20.33 Nm (180 lb-in.) |
| Maximum operating speed | 5000 rpm |
| Encoder | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft Extension | Smooth shaft |
| Compatible Servo Drives | Kinetix 5700, Kinetix 5500 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Rated Speed | 4500 rpm |
| Magnet Stacks | 3 |
| Feedback | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Smooth |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Brand | Allen Bradley |
