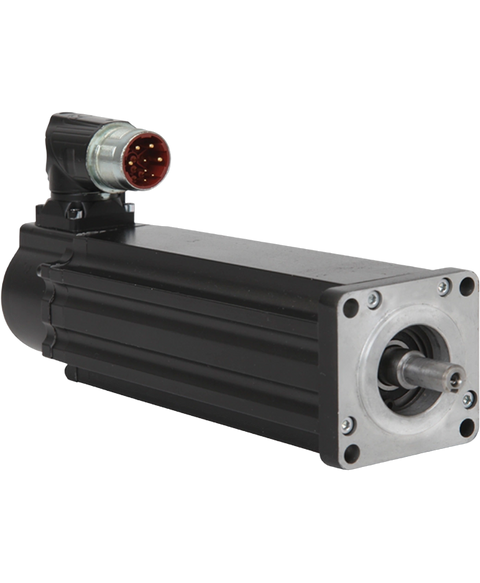

Allen Bradley VPL-B1153F-PJ12AA
The Allen-Bradley VPL-B1153F-PJ12AA is a Kinetix VPL Low Inertia servo Motor. This motor is a Brushless AC Synchronous Servo Motors which is compatible with Kinetix 5700 and Kinetix 5100 serco drives. This servo motor is a 400V class motor with 115 mm bolt circle diameter (BDC), 3-inch Magnet stack length, rated speed of 4500 RPM. It has a built-in 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) used for position feedback. It is installed with a Shaft key and uses Single SpeedTec DIN connector, right angle, 325° rotatable.
This Allen Bradley VPL-B1153F-PJ12AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26891789154.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1153F-PJ12AA |
| UPC | 884951870659 |
| Weight | 13.00 lbs (5.90 kg) |
| Voltage | 460VAC |
| Frame Size | 115 mm |
| Product Family | VPL Series Low Inertia servo motors |
| Rated Power | 2.30 kW |
| Continuous Stall Torque | 6.55 Nm (58.0 lb-in.) |
| Peak Stall Torque | 20.33 Nm (180 lb-in.) |
| Maximum operating speed | 5000 rpm |
| Encoder | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Brake | No |
| Shaft Extension | Shaft key/No shaft seal |
| Compatible Servo Drives | Kinetix 5700, Kinetix 5500 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Rated Speed | 4500 rpm |
| Magnet Stacks | 3 |
| Feedback | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Shaft Key |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Brand | Allen Bradley |
