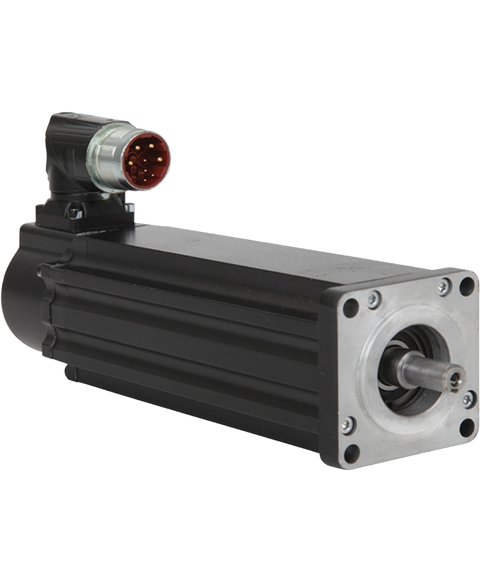

Allen Bradley VPL-B1003F-PK12AA
The Kinetix VPL servo motor with catalog number VPL-B1003F-PK12AA is a 400 V class, low Inertia servo Motor which is essentially a Brushless AC Synchronous Servo Motors. This servo motor is designed to be compatible with Kinetix 5700 and Kinetix 5100 servo drives. This servo motor has a 100 mm bolt circle diameter (BDC), 3-inch Magnet stack length, rated speed of 4500 RPM. It has a built-in feedback 18-bit absolute multi-turn digital encoder as a feedback device that supports Hiperface DSL protocol. It has a smooth shaft and uses single SpeedTec DIN connector, a right angle, 325° rotatable.
This Allen Bradley VPL-B1003F-PK12AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26892107896.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1003F-PK12AA |
| UPC | 884951312234 |
| Weight | 9.69 lbs (4.39 kg) |
| Voltage | 460VAC |
| Frame Size | 100 mm |
| Product Family | VPL Series Low Inertia servo motors |
| Motor Type | Brushless AC asynchronous motor |
| Rated Power | 1.65 kW (2.21 HP) |
| Continuous Stall Torque | 4.18 Nm (37.0 lb-in) |
| Peak Stall Torque | 11.15 Nm (99.0 lb-in) |
| Maximum operating speed | 4750 rpm |
| Encoder | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Brake | No |
| Shaft Extension | Smooth shaft |
| Compatible Servo Drives | Kinetix 5700, Kinetix 5500 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Inertia output | 0.0000012 kg-m2 (0.00010 lb-in-s2) |
| Rated Speed | 11:00 AM |
| Maximum speed | 4750 RPM |
| Magnet Stacks | 3 |
| Stack Length | 3 |
| Feedback | 18-bit absolute multi-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Smooth |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Connection | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Protection rating | IP50 (standard) |
| Factory Options | Standard |
| Shaft seal | VPL-SSN-F063075 |
| Brand | Allen Bradley |
