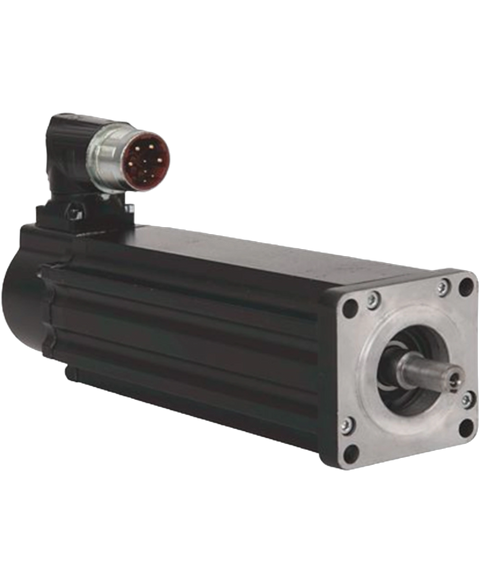

Allen Bradley VPL-B1003F-CJ12AA
The Allen-Bradley VPL-B1003F-CJ12AA servo motor is a low-inertia servo motor that has been manufactured with permanent magnet technology. It is part of the Allen-Bradley VPL series of servo motors and it is designed to be compatible with servo drives from the Allen-Bradley Kinetix 5500 and Kinetix 5700 series in a variety of applications. The VPL-B1003F-CJ12AA low-inertia servo motor comes with a shaft key but no shaft seal. However, an optional shaft seal can be added to provide the shaft of the motor with additional protection from water. The VPL-B1003F-CJ12AA low-inertia servo motor operates at a voltage rating of 400 Volts and at a shaft speed rating of 4500 RPM.
This Allen Bradley VPL-B1003F-CJ12AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805459659.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-Inertia Servo Motor |
| Product Line | VPL Servo Motors |
| Part Number | VPL-B1003F-CJ12AA |
| UPC | 884951871564 |
| Weight | 12.00 lbs (5.44 kg) |
| Voltage | 460VAC |
| Frame Size | 100 mm |
| Product Family | VPL Series Low Inertia servo motors |
| Motor Type | Brushless AC asynchronous motor |
| Rated Power | 1.65 kW (2.21 HP) |
| Continuous Stall Torque | 4.18 Nm (37.0 lb-in.) |
| Peak Stall Torque | 11.15 Nm (99.0 lb-in.) |
| Maximum operating speed | 4750 rpm |
| Encoder | 18-bit absolute single-turn digital encoder (Hiperface DSL protocol) |
| Stack Length | 2 |
| Brake | No |
| Shaft Extension | Shaft key/No shaft seal |
| Compatible Servo Drives | Kinetix 5700, Kinetix 5500 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Rated Speed | 4500 RPM |
| Magnet Stacks | 3 |
| Feedback | 18-bit absolute single-turn digital encoder (Hiperface DSL protocol) |
| Shaft | Shaft Key |
| Connector | Single SpeedTec DIN connector, right angle, 325° rotatable |
| Mounting Flange | IEC metric, free mounting holes (type FF) |
| Factory Options | Standard |
| Brand | Allen Bradley |
