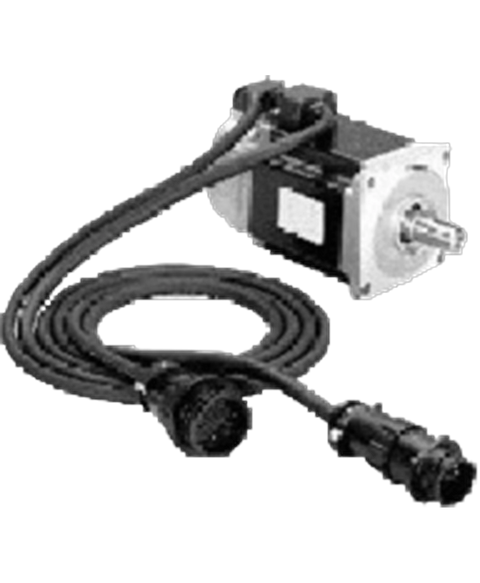

Allen Bradley TLY-A220T-HJ62AA
The Allen-Bradley TLY-A220T-HJ62AA is a Kinetix TLY Low Inertia, Compact Servo Motor. This motor is a Brushless AC Synchronous Servo Motors which is compatible with Kinetix 5100, Kinetix 5300, Kinetix 6000, Kinetix 300 , 350, Kinetix 2000 and Ultra 3000 Servo drives. This servo motor is a 200V class motor with 70 mm (2.75 in.) or NEMA 23 frame size, 220 mm Magnet stack length, rated speed of 6000 RPM. It has a 2000 lines,revolution, incremental encoder for position feedback with IP65 housing, installed with a Shaft key. It uses Cables with circular connectors which measures 1 m (39.4 in.).
This Allen Bradley TLY-A220T-HJ62AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26801433051.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Product Type | Low-inertia Servo Motor |
| Product Line | TLY and TL Servo Motors |
| Part Number | TLY-A220T-HJ62AA |
| UPC | 820919821943 |
| Weight | 3.31 lbs (1.50 kg) |
| Frame Size | 15 = 63 mm |
| Voltage | 230VAC |
| Product Family | TLY Series Low Inertia servo motors |
| Rated Power | 0.35 kW |
| Continuous Stall Torque | 0.836 Nm (7.4 lb-in.) |
| Peak Stall Torque | 1.48 Nm (13.1 lb-in.) |
| Encoder | 2000 lines/revolution, incremental encoder |
| Stack Length | 70 mm (2.75 in.) or NEMA 23 |
| Brake | No |
| Shaft Extension | Shaft key/No shaft seal |
| Compatible Servo Drives | Kinetix 5100, Kinetix 5300, Kinetix 6000, Kinetix 300 / 350, Kinetix 2000 and Ultra 3000 Servo drives. |
| Compatible Applications | Robotics, Material handling, X-Y tables, Specialty machinery, Semiconductor manufacturing, Medical/laboratory equipment, Light packaging machines and Office machinery. |
| Connection | Cables with circular connectors, 1 m (39.4 in.) for Kinetix TLY |
| Magnet Stack Length | 20 |
| Rated Speed | 6000 RPM |
| Feedback | 2000 lines/revolution, incremental encoder |
| Enclosure/Shaft Key | IP65/Shaft Key |
| Connectors | Cables with circular connectors, 1 m |
| Factory Options | Standard Metric |
| Brand | Allen Bradley |
