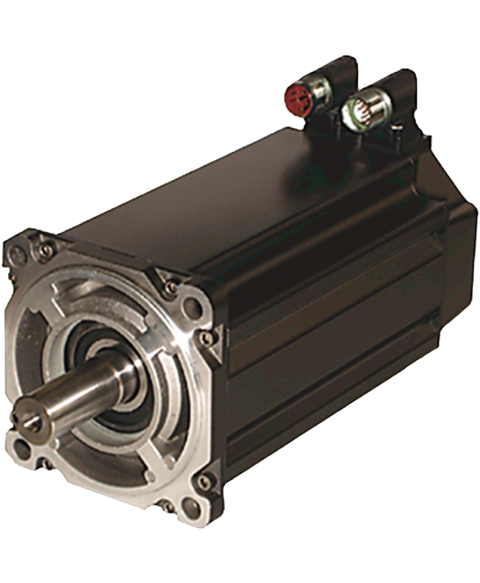

Allen Bradley MPL-B680F-SJ72AA
The Kinetix MPL servo motor with catalog number MPL-B680F-SJ72AA is a 400 V class, low Inertia servo Motor which is essentially a Brushless AC Synchronous Servo Motor. This servo motor is designed incompatibility with Kinetix 5500, Kinetix 5700, Kinetix 6200,6500, Kinetix 6000, Kinetix 300,350, Kinetix 2000, Kinetix 7000 servo drives. This servo motor has a 215 mm frame size, 203.2 mm (8.0 in.) Magnet stack length rated speed of 3000 RPM. It has a built-in feedback 1024 sin,cos, an absolute single-turn encoder that supports Hiperface protocol. It has a keyed shaft and uses a Circular SpeedTec DIN connector, right angle, 325° rotatable.
This Allen Bradley MPL-B680F-SJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26892315242.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B680F-SJ72AA |
| UPC | 884951067929 |
| Weight | 100.00 lbs (45.36 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Rated Power | 7.5 kW |
| Series Type | Low-inertia |
| Peak Stall Torque | 108.5 N-m (960 lb-in) |
| Voltage Class | 400 Volts AC |
| Product Family | MPL Series Low Inertia servo motors |
| Inertia output | 0.00775 kg-m2 () (0.0685 lb-in-s2) |
| Frame Size | 215 mm |
| Voltage | 460 VAC |
| Maximum speed | 3000 RPM |
| Magnetic Stack Length | 8 inches |
| Continuous Stall Torque | 60.0 N-m (531 lb-in) |
| Shaft Extension | Keyed shaft |
| Rated Speed | 2000 RPM |
| Continuous Current (0-pk) | 48.0 A |
| Protection rating | IP50 (standard) |
| Feedback | Single-turn high-resolution encoder |
| Shaft seal | MPL-SSN-A6B6 |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Rotor inertia | 0.00775kg-m2 (0.0685 lb-in.-s2) |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Voltage input | 460 VAC, 3-Phase |
| Brake | No brake |
| Maximum operating speed | 3000 rpm |
| Mounting Flange | IEC metric |
| Encoder | 1024 sin/cos, absolute single-turn encoder device that supports Hiperface protocol |
| Factory Designated Options | Standard |
| Stack Length | 203.2 mm (8.0 in.) |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Connection | Circular SpeedTec DIN connector, right angle, 180° rotatable |
| Brand | Allen Bradley |
