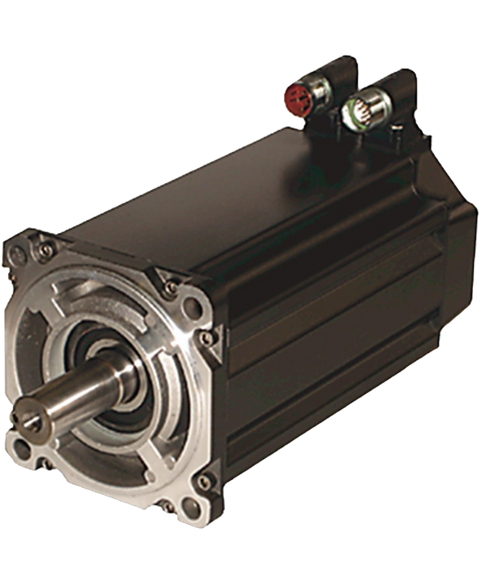

Allen Bradley MPL-B560F-SJ72AA
The MPL-B560F-SJ72AA is an Allen-Bradley Servo motor that is part of the Low inertia MPL series. This servo motor is a 400 V class Brushless AC synchronous motor. It has 165 mm frame with magnet stack length of 152.4 mm or 6.0 inches and 3000 rpm rated speed. It uses a right-angle Circular (SpeedTec) DIN connector, 180degrees rotatable with integral 1024 sin , cos single-turn absolute encoder. It comes with a shaft key without a shaft seal.
This Allen Bradley MPL-B560F-SJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805529824.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B560F-SJ72AA |
| UPC | 820919984228 |
| Weight | 45.00 lbs (20.41 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Product Family | MP Series Low Inertia servo motors |
| Frame Size | 5= 165 mm |
| Voltage | 400 V |
| Magnetic Stack Length | 6 inches |
| Continuous Stall Torque | 26.8 N-m |
| Rated Speed | 3000 rpm |
| Continuous Current (0-pk) | 20.6 A |
| Feedback | Single-turn high-resolution encoder |
| Rated Power | 5.5 kW |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Rotor inertia | 0.00213 kg-m2 (0.0019 lb-in.-s2) |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Voltage input | 460 VAC, 3-Phase |
| Brake | No brake |
| Maximum operating speed | 3000 rpm |
| Mounting Flange | IEC metric |
| Encoder | 1024 sin/cos high-resolution single-turn absolute encoder |
| Factory Designated Options | Standard |
| Stack Length | 152.4 mm (6.0 in.) |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly, Automotive |
| Connection | Circular (SpeedTec) DIN connector, right angle, 180degrees rotatable |
| Brand | Allen Bradley |
