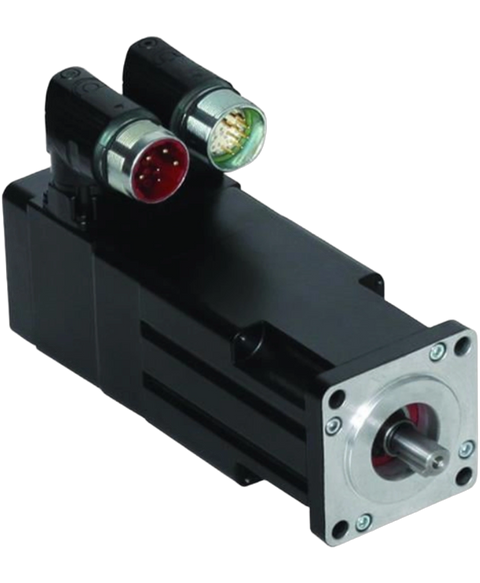

Allen Bradley MPL-B4530K-SK72AA
This low inertia compact brushless servo motor constructed by Allen Bradley,Rockwell Automation is a 165 millimeter frame size servo motor. Also, this AB AC servo comes with a single-turn absolute encoder feedback installed in the rear of the motor. Additionally, this low rotor inertia smart motor has a revolutions per minute rating of 4000 revolutions per minute. This motor is equipped with circular DIN (right angle) servo cable connections which are pre-installed on this adaptible servo motor, comes with no braking capability installed, and no a no shaft key and no shaft seal.
This Allen Bradley MPL-B4530K-SK72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805655846.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B4530K-SK72AA |
| UPC | 820919983771 |
| Weight | 5.50 lbs (2.49 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Frame Size | 130 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 4000 rpm |
| Feedback | Single-turn high-resolution encoder |
| Shaft Key/Seal | No shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
