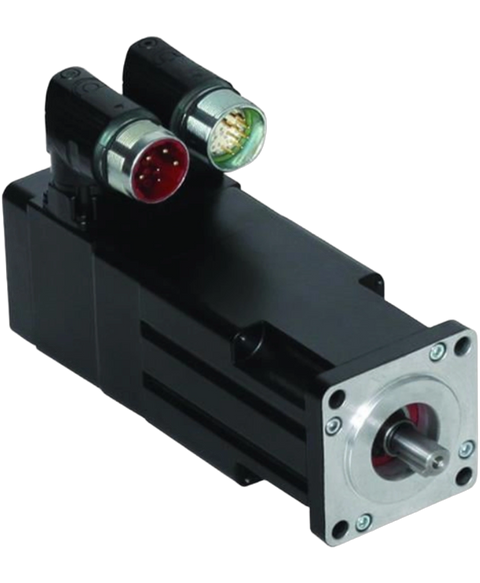

Allen Bradley MPL-B230P-VJ74AA
This low rotor inertia high-torque motor assembled by AB is a 5000 RPM servo. This MPL Series AC servo motor can be connected by right angle DIN cable connectors that are part of this high quality motor. Additionally, it features a multi-turn hyperface feedback, comes with a shaft key, with no shaft seal installed if a shaft key is needed, and a 24 VDC brake for applications that require a brake. Also, this low inertia brushless motor needs 400V power to spin.
This Allen Bradley MPL-B230P-VJ74AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805604708.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B230P-VJ74AA |
| UPC | 884951213982 |
| Weight | 8.00 lbs (3.63 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Frame Size | 75 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 5000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | 24 Volts DC brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
