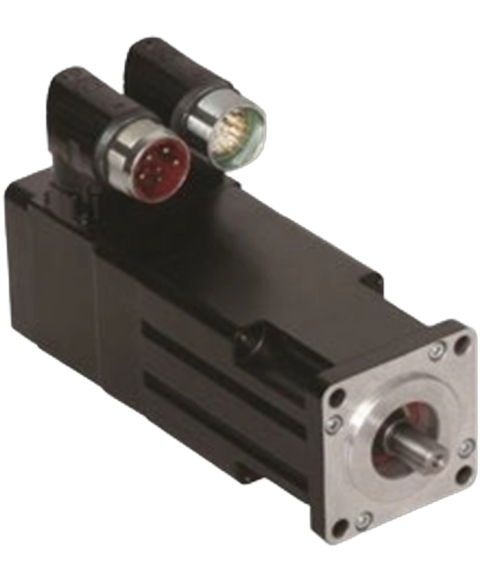

Allen Bradley MPL-B230P-VJ72AA
This AC motor manufactured by Allen Bradley (AB) has a speed rating of 5000 RPM. In addition, it comes with a shaft key, with no shaft seal installed on the servo to allow for connecting to this motor and includes a multi-turn absolute (high-resolution) encoder feedback. Also, this AB servo comes with voltage rating of 400 VAC. It is equipped with circular DIN, right angle, 180 degrees rotatable cable connections that come on top of this servo motor. This MP low inertia permanent magnet motor comes w,o brake included.
This Allen Bradley MPL-B230P-VJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805422910.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B230P-VJ72AA |
| UPC | 884951213975 |
| Weight | 5.81 lbs (2.64 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts |
| Frame Size | 75 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 5000 RPM |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
