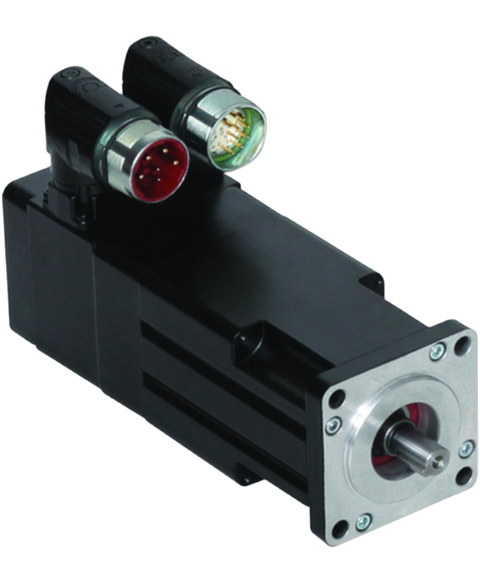

Allen Bradley MPL-B230P-EJ74AA
This Allen Bradley (AB) MP low inertia AC synchronous servo motor is a 5000 rpm rated servo. This servo motor is a 230 AC class servo and comes with a shaft key, with no shaft seal installed on the servo if a shaft key is needed. Additionally, this MPL compact brushless motor can be connected by circular DIN (right angle) cable connectors which are included on this adaptible servo motor. It comes with a 24V DC brake for braking applications. This MP low inertia smart motor also features a single-turn absolute (high-resolution) encoder.
This Allen Bradley MPL-B230P-EJ74AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26893613795.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B230P-EJ74AA |
| UPC | 884951213944 |
| Weight | 7.00 lbs (3.18 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Frame Size | 75 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 5000 rpm |
| Feedback | Single-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | 24 Volts DC brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
