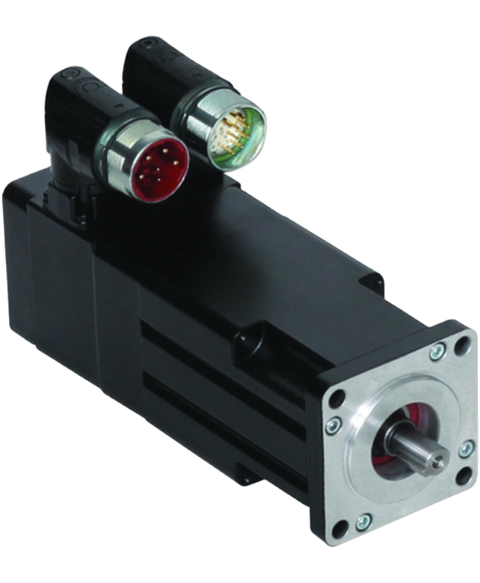

Allen Bradley MPL-B230P-EJ72AA
The MPL-B230P-EJ72AA constructed by AB is a 5000 RPM rated compact servo. This low inertia synchronous servo comes with a keyed shaft on the motor if a shaft key is needed. This permanent magnet servo motor comes with no brake installed in the servo, has a single-turn hyperface feedback built in, and is powered on via 400 volt. In addition, it comes with circular DIN connectors that are part of this high quality motor.
This Allen Bradley MPL-B230P-EJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26960693781.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B230P-EJ72AA |
| UPC | 884951213937 |
| Weight | 5.94 lbs (2.69 kg) |
| Brake | No |
| Frame Size | 2 = 75 mm |
| Product Family | MP Series Low Inertia servo motors |
| Voltage | 400VAC |
| Torque Rating | 2.1 NM |
| Rated Power | 0.86 kW |
| Encoder | 128 sin/cos, absolute single-turn encoder (Hiperface protocol) |
| Stack Length | 76.2 mm (3.0 in.) |
| Mounting Holes | Type FF |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500,Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly, Automotive |
| Connection | Circular (SpeedTec) DIN connector, right angle, 180° rotatable |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low inertia |
| Voltage Class | 400 Volts |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 5000 RPM |
| Feedback | Single-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
