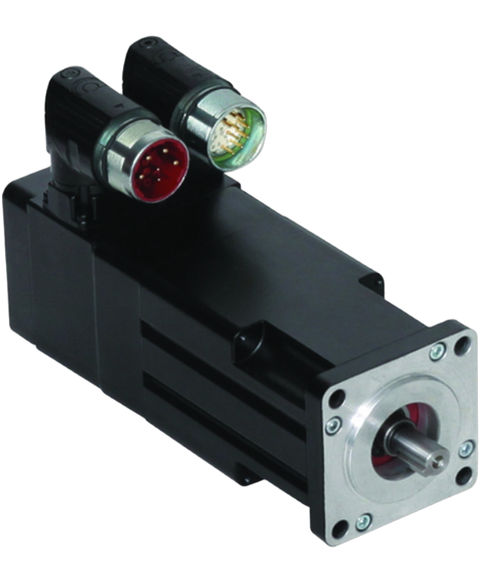

Allen Bradley MPL-B220T-VJ74AA
This Allen Bradley (AB) MPL brushless motor has a RPM rating of 6000 RPM. Also, it is a 400 VAC voltage class module. This servo motor has a multi-turn (hyperface protocol) absolute encoder installed in the servo and a length of 2 in. It has right angle DIN cable connectors that come on top of this top of the line servo motor. In addition, this MPL brushless servo motor comes with a 24 DC brake included in the servo motor if braking is needed.
This Allen Bradley MPL-B220T-VJ74AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26892096179.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B220T-VJ74AA |
| UPC | 884951213920 |
| Weight | 6.00 lbs (2.72 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Frame Size | 75 millimeters |
| Magnetic Stack Length | 2 inches |
| Rated Speed | 6000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | 24 Volts DC brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
