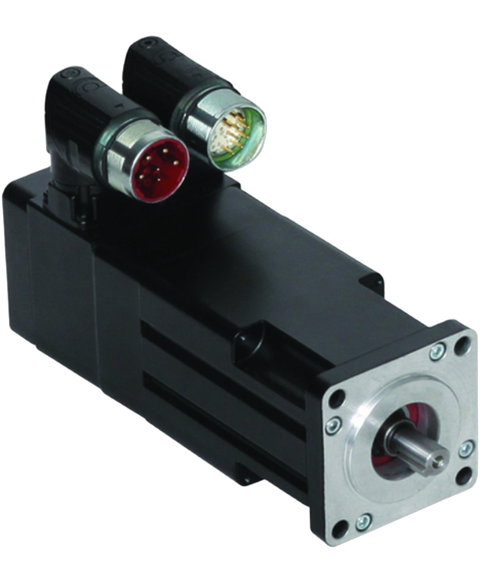

Allen Bradley MPL-B220T-VJ72AA
This synchronous servo assembled by Allen Bradley (AB) comes with a revolutions per minute rating of 6000 rpm. In addition, this low inertia brushless motor can be connected by circular DIN cable connectors that are part of this servo motor. This low inertia brushless motor is equipped with a high-resolution multi-turn (128 sin,cos) encoder. Also, this AC motor has a shaft key, with no shaft seal included on the shaft of this servo motor. This permanent magnet servo motor doesn't have braking capability installed in the servo and is powered on by 230 AC.
This Allen Bradley MPL-B220T-VJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805414082.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B220T-VJ72AA |
| UPC | 884951213913 |
| Weight | 4.31 lbs (1.96 kg) |
| Brake | No |
| Frame Size | 75 mm |
| Series | Premium permanent magnet rotary servo motor |
| Product Family | MPL Series Low Inertia servo motors |
| Motor Type | Brushless AC asynchronous motor |
| Voltage | 460VAC |
| Rated Power | 0.62 kW |
| Continuous Stall Torque | 1.61 Nm (14.2 lb-in.) |
| Peak Stall Torque | 4.74 Nm (42.0 lb-in.) |
| Encoder | 128 sin/cos, absolute multi-turn encoder (Hiperface protocol) |
| Stack Length | 50.8 mm (2-inches) |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000 and Kinetix 7000. While the VPL series only supports Kinetix 5500 and 5700 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Connection | Circular SpeedTec DIN connector, right angle, 180° rotatable |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts |
| Magnetic Stack Length | 2 inches |
| Rated Speed | 6000 RPM |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
