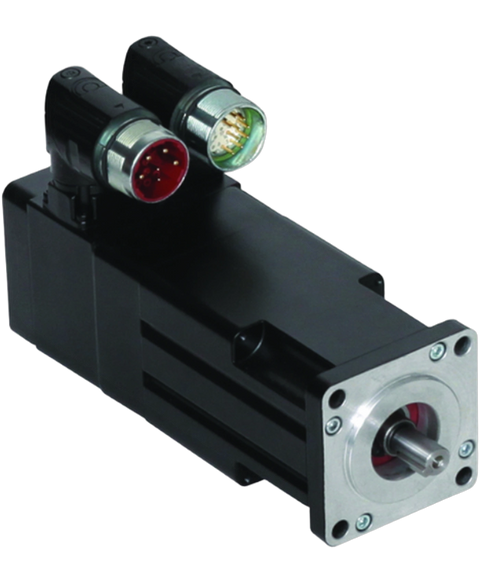

Allen Bradley MPL-B220T-EJ72AA
This AB 6000 rpm MP low inertia servo comes with a single-turn hyperface feedback installed in the rear of the motor. It can be connected by circular DIN (right angle) connectors which are included on this AC servo motor and has a shaft key, but no shaft seal built-in to allow for connecting to this motor. It comes with a stack length of 2 in. Also, this Allen-Bradley servo motor comes without 24 DC brake installed in the servo. This high-torque motor comes with power requirements of 400 volt.
This Allen Bradley MPL-B220T-EJ72AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805431053.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B220T-EJ72AA |
| UPC | 884951213876 |
| Weight | 4.00 lbs (1.81 kg) |
| Brake | No |
| Frame Size | 75 mm |
| Series | Premium permanent magnet rotary servo motor |
| Product Family | MPL Series Low Inertia servo motors |
| Motor Type | Brushless AC asynchronous motor |
| Voltage | 460VAC |
| Rated Power | 0.62 kW |
| Continuous Stall Torque | 1.61 Nm (14.2 lb-in.) |
| Peak Stall Torque | 4.74 Nm (42.0 lb-in.) |
| Maximum operating speed | 6000 rpm |
| Encoder | 128 sin/cos, absolute single-turn encoder (Hiperface protocol) |
| Stack Length | 50.8 mm (2-inches) |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000 and Kinetix 7000. While the VPL series only supports Kinetix 5500 and 5700 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly and Automotive |
| Connection | Circular SpeedTec DIN connector, right angle, 180° rotatable |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Magnetic Stack Length | 2 inches |
| Rated Speed | 6000 rpm |
| Feedback | Single-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
