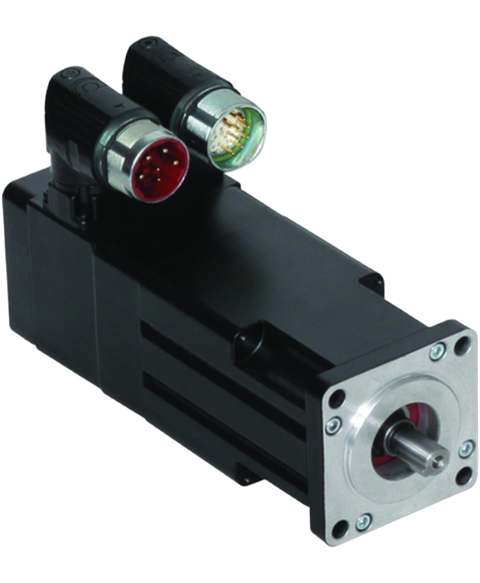

Allen Bradley MPL-B1530U-VJ74AA
This Allen Bradley (AB) MP low inertia brushless servo is a 7000 RPM rated compact servo. This low inertia servo is equipped with circular DIN (right angle) servo cable connections which are pre-installed on this AC servo motor. This servo motor has a 24 DC brake built into the motor if braking is required. This MP low inertia permanent magnet motor additionally is a 165 mm frame servo. Furthermore, this VAC drive has a shaft key, with no shaft seal included on the shaft of this servo motor to allow for connecting to this motor.
This Allen Bradley MPL-B1530U-VJ74AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805546725.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-B1530U-VJ74AA |
| UPC | 884951213821 |
| Weight | 3.81 lbs (1.73 kg) |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts AC |
| Frame Size | 63 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 7000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | 24 Volts DC brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
