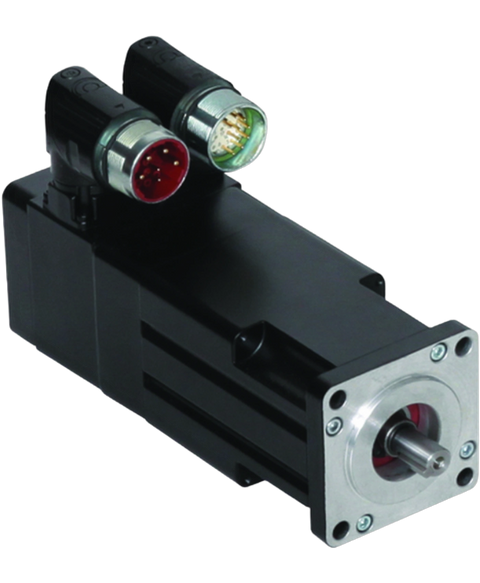

Allen Bradley MPL-A320H-HJ22AA
The AB MPL-A320H-HJ22AA compact brushless servo motor is a 3500 rpm rated motor. Furthermore, this Allen-Bradley drive has a shaft key, with no shaft seal on the motor to allow for connecting to this motor. This MPL high-torque motor is a 100 mm frame motor. It has a hall 2000 Line encoder installed and utilizes 460 volt to turn. This MPL motor doesn't have braking installed in the servo.
This Allen Bradley MPL-A320H-HJ22AA is supplied brand new by PartLogic for machine drive systems, motion control, equipment maintenance, replacement motor sourcing and industrial automation applications. It forms part of our Industrial automation > Motors > Servo motors range and is referenced internally as PartLogic SKU PL26805432814.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Allen Bradley |
| Category | Motors |
| Product Line | MPL Servo Motors |
| Part Number | MPL-A320H-HJ22AA |
| Weight | 8.00 lbs (3.63 kg) |
| Frame Size | 3 = 100 mm (3.94 in.) |
| Brake | No |
| Product Family | MP Series Low Inertia servo motors |
| Voltage | 230VAC |
| Torque Rating | 3.05 NM |
| Rated Power | 1.0 kW |
| Output Current | 6.1 Amperes |
| Encoder | 2000 lines/revolution, incremental encoder |
| Stack Length | 50.8 mm (2.0 in.) |
| Mounting Holes | Type FF |
| Shaft Extension | Keyed |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500,Kinetix 6000, Kinetix 300/350, Kinetix 2000, Kinetix 7000 |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly, Automotive |
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 200 Volts AC |
| Magnetic Stack Length | 2 inches |
| Rated Speed | 3500 rpm |
| Feedback | 2000 line encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular bayonet, facing shaft |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Brand | Allen Bradley |
